Artificial turf for eleven-a-side football field

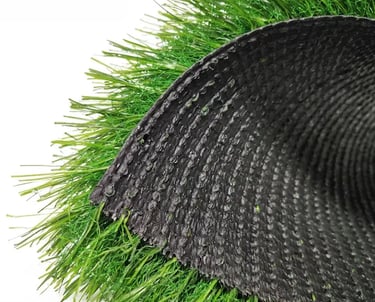

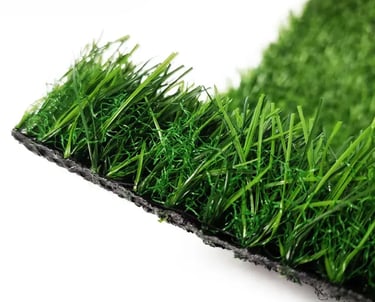

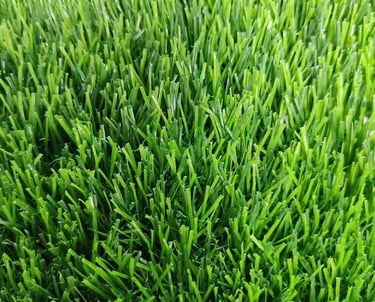

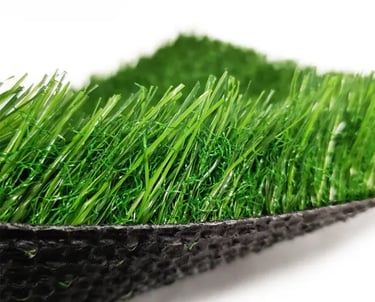

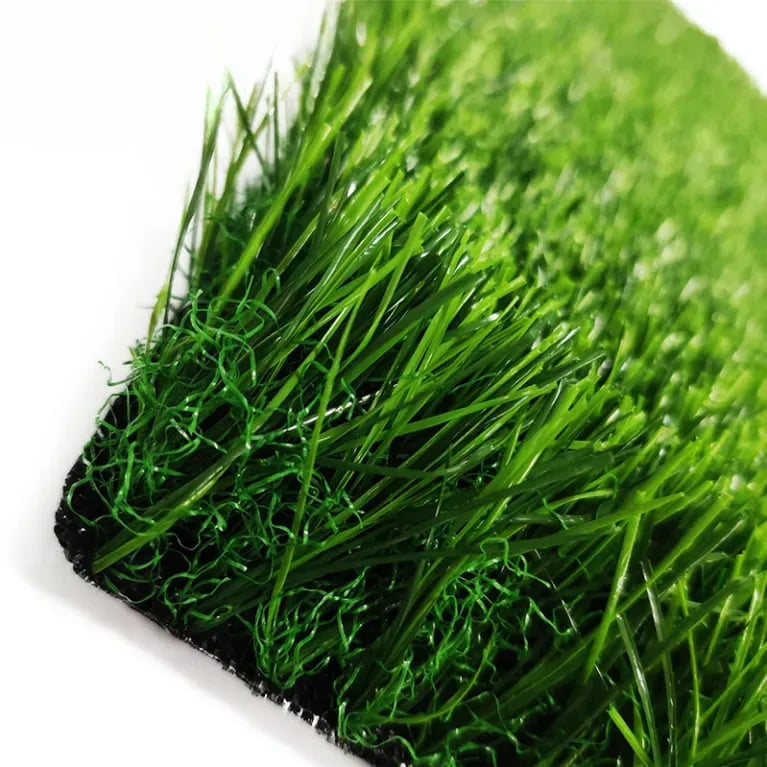

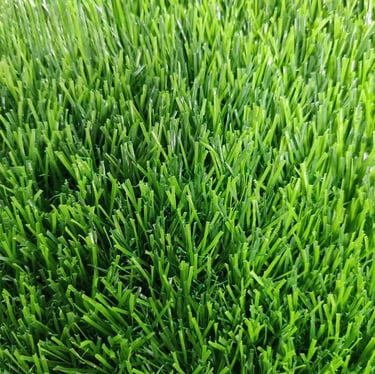

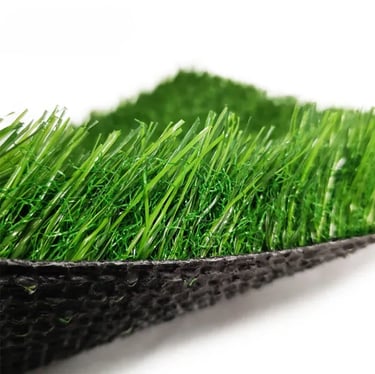

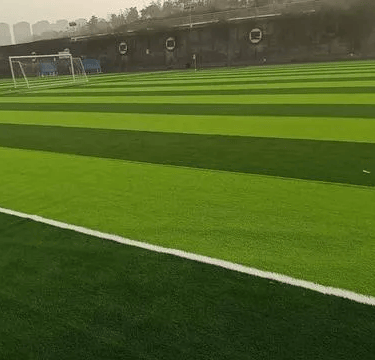

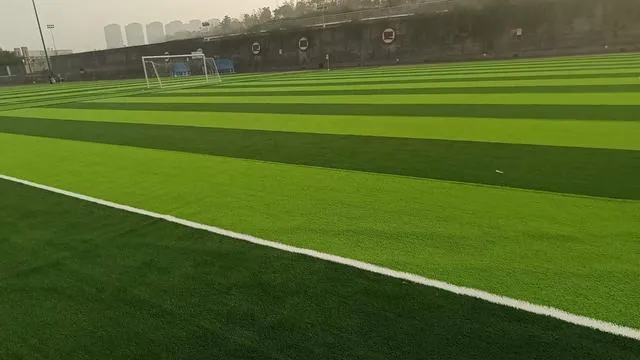

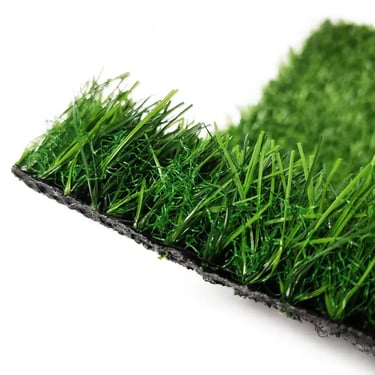

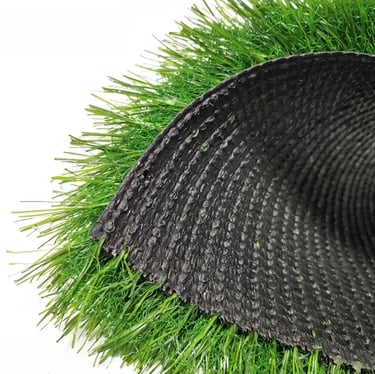

Eleven-a-side artificial grass football field, also known as standard football field, the size of the playing field stipulated by FIFA is 109 meters long and 72 meters wide, of which the playing field is 105 meters long and 68 meters wide, with a total area of about 8,000 square meters. The artificial turf of the eleven-a-side football field generally chooses 50mm high sand-filled artificial turf for football fields, the grass height is 50mm, the density is 10500-12600 clusters per square meter, the weight of the grass fiber should not be less than 8800DTEX, the higher the weight of the grass fiber The better the quality, after the lawn is laid, each square meter needs to be filled with about 28kg of quartz sand and 4-6kg of green rubber particles. The rubber particles can generally choose EPDM rubber particles or TPE particles, both of which meet national standards. The turf color of the eleven-a-side artificial turf football field is a combination of dark green and light green, usually 4 meters dark and 4 meters light.

Shipping: Support Sea freight · Land freight

Customization: Customized packaging (Min. Order: 1000 Square Meters)

Features of Eleven-a-side artificial turf football field:

1. The degree of simulation is high, the grass silk is soft and comfortable, the color is soft and beautiful, and the combination of dark and light colors is more professional;

2. Grass silk is sun-resistant and UV-resistant, and can be durable outdoors for more than 6-8 years without fading and weathering;

3. It can be used around the clock without fear of wind and rain;

4. The cost is low, and there is basically no need for maintenance in the later stage;

5. Green, environmentally friendly and pollution-free, in line with the strict GB 36246-2018 new national standard test;

6. Easy to install, only professional artificial turf glue is needed to complete the installation, and it can be installed on various foundations such as cement, asphalt, floor tiles, and notoginseng lime soil.

Eleven-a-side artificial turf football field pavement requirements:

1. Artificial turf height 50 ~ 65mm,

2. The density of artificial turf is 9500～10500 needles/square meter,

3. The DETX value of artificial turf is above 6000.

4. Site quartz sand requirements: particle size, silicon content above 90%.

5. The filling amount of quartz sand on the site is 20-30KG/square meter.

6. Field rubber particle requirements: particle size 1mm~3mm,

7. The filling amount of rubber granules on the site is 5~8KG/square meter.

11-a-side artificial turf football field pavement

1. Preparation before entering the site for construction: review the size of the site, test the flatness, slope and surface appearance of the foundation, and enter the site for construction after meeting the requirements.

2. Line setting (measurement): find out the center point of the field and the center of the two semicircles, and draw the line according to the three positioning points, determine the intersection point of the center line and side line of the field, and then use the Pythagorean theorem to determine the corner points on the field , The exact position of the line, and then determine the position of each function point and line, and mark it with ink line or paint line.

3. Artificial turf paving positioning: Lay from the center to both sides. Other artificial turf rolls are spread from the center line to the bottom line on both sides of the site according to the requirements of the design pavement drawing. When spreading, try to make the white woven on the turf The dashed line is at the position of the function line, reducing the number of cuts.

4. Splicing of artificial turf: the standard width of each roll of grass is 4m, and there is no need to overlap between the rolls of grass. Brush an appropriate amount of glue on the sewing cloth, and complete the bonding of the lawn in turn.

5. Splicing treatment of green artificial turf.

6. Apply glue: turn up the bottom of the artificial turf at the seam, the width of each side of the turf is about 50 cm, and then spread the 25 cm wide seam cloth along the center of the turf seam, apply the special glue Brush on the bottom of the turf seam and the seam cloth respectively, and apply the glue on the turf seam with a brush.

The seam cloth is evenly scraped on the seam cloth with a squeegee. In order to achieve the best bonding effect, fully stir the glue before use or invert the packaging barrel several times to make the glue mix evenly. Apply glue in the same direction when brushing, which is beneficial to drive out the air and improve the uniformity of glue application and enhance the adhesion.

Drying: After the glue is applied, wait for the glue to volatilize naturally. After the glue is applied, it must be left to dry for a period of time until the solvent evaporates completely, so as to prevent the adhesive layer from sticking or bubbling, which will affect the bonding quality.

Bonding: When gluing, the turf on both sides should be aligned and bonded to the seam cloth at one time. After the turf is glued, use a leather hammer or a heavy object to roll it to make it bond firmly.

7. Adhesive white functional lines: After the turf is basically spliced, pull the thread again to determine the exact position of each functional line and point, cut it with a paper knife, pull out the cut grass, put the seam cloth in, scrape Apply glue, put back the previously prepared white grass thread, and beat it repeatedly with a rubber hammer to make it stick tightly.

8. Sod trimming: After the turf is paved and spliced, the folded part of the turf needs to be opened with a paper knife, straightened and docked, and the overlapping parts are cut off, and then glued. Then use a grass brusher to comb. In the first pass, use a grass brusher to comb the lodging grass lines in the field.

9. Artificial turf is filled with quartz sand.

10. Artificial turf is filled with rubber particles.

11. After all the filling is completed, comb the grass fibers vertically and horizontally with a grass brushing machine once.
